LIBS – A new beryllium testing method
by Richard W. Hughes

April 29, 2004 – Laser-Induced Breakdown Spectroscopy (LIBS) is a technique being touted as a means of bringing the cost of beryllium testing in corundum down to reasonable levels.

Also known as Laser Spark Spectroscopy (LASS) or Laser-Induced Plasma Spectroscopy (LIPS), this technique was first developed at Los Alamos National Laboratories and involves focusing a laser pulse onto a surface. The energy from the pulse heats, vaporizes, atomizes and then ionizes the material on the surface, resulting in a small, hot plasma. The atoms and ions in the plasma emit light which is then detected. The unique spectral signatures allow elements in the plasma to be identified. This technique can be applied to the rapid analysis of metals for the purpose of sorting and/or monitoring composition during processing.

Why LIBS matters
In mid-2001, unusual orange sapphires began appearing in Thai gem markets. It was later proven that these stones were actually pink sapphires with an artificially colored rim created by diffusing beryllium into the stone.
     By itself, the beryllium creates a yellow color through a trapped-hole color center. Just a few parts per million of beryllium are enough to produce a significant alteration of color in many specimens. Put this yellow on a pink stone and you get orange.
     In the case of some orange sapphires, such as the stone pictured below, immersion is enough to unmask the fraud. But in others, the beryllium penetrates entirely through the gem, making them impossible for even sophisticated gem labs to positively identify. Such stones previously had to be sent out for expensive SIMS or LA-ICP-MS analyses, tests costing hundreds of dollars per stone.
     Enter LIBS. LIBS equipment costs approximately $50,000–80,000 per unit, as opposed to the $300,000+ of LA-ICP-MS or $750,000+ for SIMS. This puts LIBS within reach of most major gem labs, and will translate into more affordable gem testing. This breakthrough should keep the gemologists at least temporarily ahead of those seeking to pass off beryllium-treated rubies and sapphires as something else.
Diffusion Treated Sapphire
Orange rim surrounding a pink core in a beryllium-treated orange sapphire from Madagascar. The color rim is visible when the gem is immersed in di-iodomethane and is evidence of a treatment. In stones where the beryllium penetrates all the way through the gem, detection is extremely difficult without sophisticated chemical analysis.
     Just a few parts per million of beryllium can alter the color of a gem. LIBS promises to dramatically reduce the cost of unmasking this treatment. (Photo: Richard Hughes/Pala International)



According to published reports, LIBS sensitivity for light elements such as beryllium and lithium can be accurate down to the 1–10 ppm level. The caveat, though, is that calibration standards for each substance being tested must be created. Thus for accurate testing of beryllium levels in corundum, calibration standards of known levels of beryllium in corundum would need to be prepared.

According to one online source:

Both portable and permanent prototype LIBS units can be developed. Each unit would be tailored to the particular application and conditions under which the unit would be operated and cost varies accordingly.

Within the past three years, applications for LIBS have exploded. Indeed, prototype LIBS units are even being fit into backpacks for landmine detection, helping soldiers distinguish mines from ordinary metal.

Henry Hänni’s Swiss Gemmological Institute (SSEF) was the first gemological lab to announce LIBS testing for beryllium in corundum. In the summer of 2003, the SSEF’s Dr. Michael Krzemnicki came across a reference to the LIBS technique on the internet. Hänni had previously been involved in making spectrographs of rocks using light arcs, a similar but more primitive technique. Following Krzemnicki’s discover of LIBS on the internet, he and Hänni began investigating it as a possible solution to the beryllium problem. By January 2004, they were convinced of the technique’s viability, but it took some hunting to find a unit suitable for gem testing. In the case of gem testing, important considerations are:

SSEF now has a suitable unit on order and will offer low-cost beryllium testing as soon as it is installed. They will also offer to the trade and to gemological laboratories:

Interested parties should contact them directly at: gemlab@ssef.ch

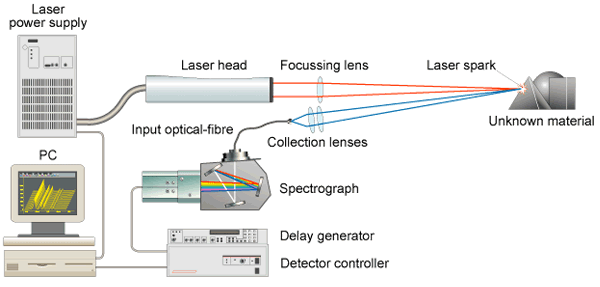

LIBS diagram
Schematic diagram of a Laser-Induced Breakdown Spectroscopy (LIBS) system. Graphic courtesy of Applied Photonics Ltd, www.appliedphotonics.co.uk; used with permission. Applied Photonics specializes in LIBS applications.

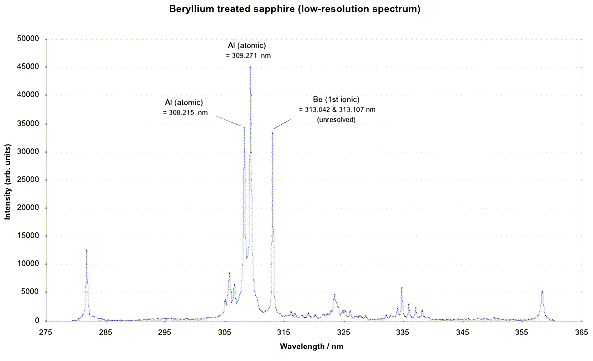

Beryllium Treated Sapphire (Low-Res Spectrum) image

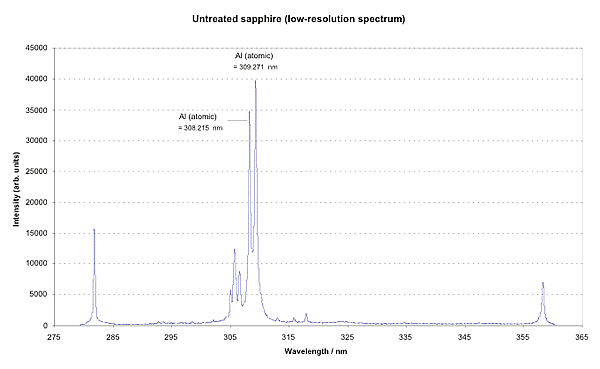

Untreated (Low-Res Spectrum) image

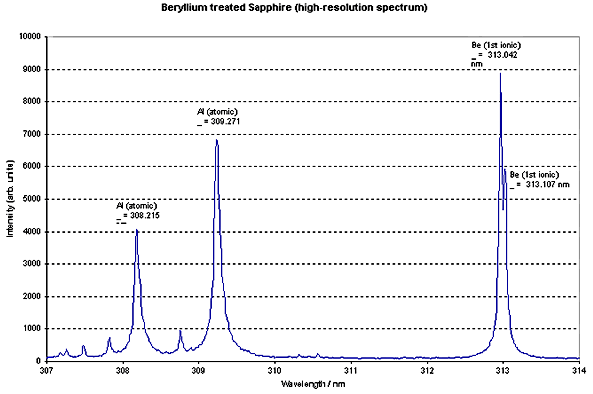

Be Treated Sapphire (High-Res Spectrum) image

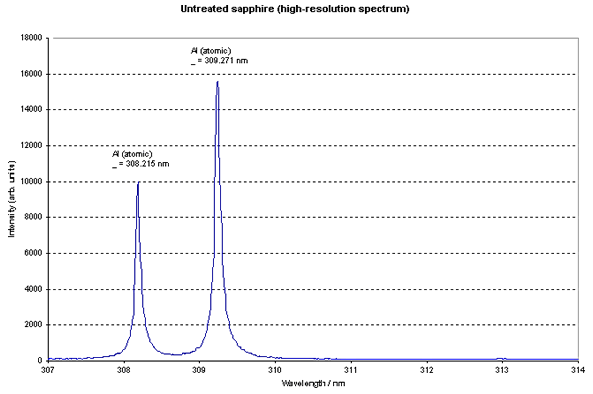

Untreated Sapphire (High-Res Spectrum) image
Laser-Induced Breakdown spectra (LIBS) of both beryllium treated and untreated sapphires. Graphics courtesy of Applied Photonics Ltd, www.appliedphotonics.co.uk; used with permission. Applied Photonics specializes in LIBS applications.

     A number of other gemological labs and related facilities around the world are also currently exploring the feasibility of incorporating such testing into their operations.
     An excellent description of the LIBS technique can be found in this PDF file.
